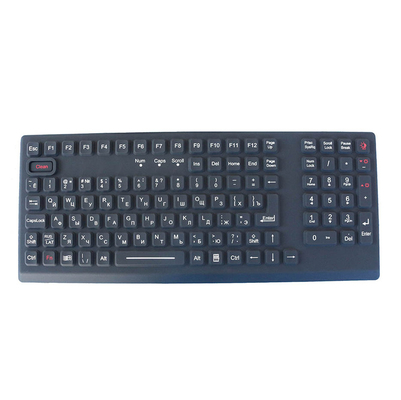

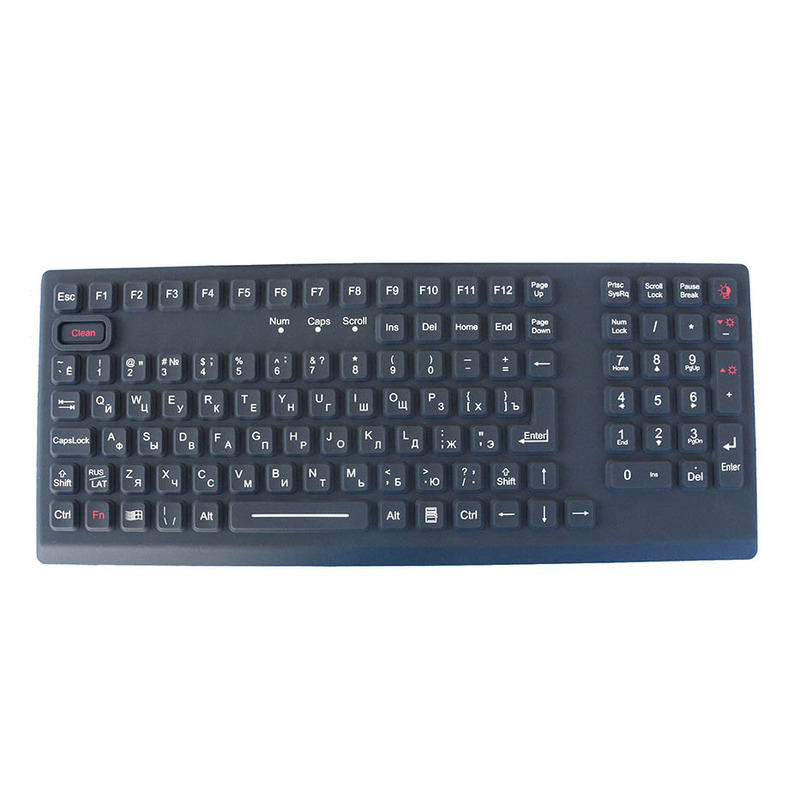

IP68 conductive rubber silcone rubber keyboard with numeric keypad and function keys

 IP68 silcone rubber keyboard with numeric keypad and function keys

DESCRIPTION:

- Sealing to IP68

- integrated with numeric keys, FN keys

- standalone desktop version with aluminum backplate

- customized languages available

- USB or PS2 interface

- 2.0KGs

- 2m cable length or customized

- carbon-on-gold key switch technology with long stroke of 1.5mm with good tactile feeling and fast accurate data input

- good for industrial/military/medical application etc.

APPLICATIONS:
IP68 membrane keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated numeric keypad. For working in low-light areas, it is also available with optional LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.

MEDICAL:

• lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
• MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
• MILITARY: Army, Navy, Air force
• INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
• OTHER INDUSTRIES

MAIN FEATURE

• keyboard with NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
• Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
• The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
• Special dura-coating for excellent mechanical and chemical resistance
• Clean key

-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime -User is notified of lock down mode by brightly lit CLEAN KEY

• With firm tactile key feel, key travel 1.5mm key travel.
• Integrated numeric keypad.
• Optical IP68 mouse available
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• PS/2, USB connection cables that plug directly into computer like keyboard operations.
• Enclosure: industrial silicone, Aluminum (rear side).

MECHANICAL DATA

• Key: 108 keys
• Key top style: Protuberant rectangular keys with tactile feeling.
• Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key and space bar key.
• Switch life: more than 10 million of operations.
• Actuation Force:0.8 N+/-0.1N for normal key with 14.0mm x 14.0mm(pressure point), 1.6 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
• Cable Length: 2.5m
• G.W.: 2.5KGs
• Dimensions: 390.0mm x 154.0mm x 19.0mm (L x W x H)

ELECTRICAL DATA

• Supply Voltage: +5V DC +/-5%
• Current Rating:
  PS2: keyboard with 210mA@5V (from keyboard port)
  USB: 220mA@5V (from CPU port)
• EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
• Emission: EN 50081-1
• Immunity: EN 50082-1
• Lifespan> 3 years
• Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
• Interface: PS2, USB available.
• OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-30oC to +65oC
• Storage temperature: :-40oC to +65oC
• Humidity: 100%
• Atmospheric pressure: 60-106Kpa
• Shock: 3x11 ms pulses of 50g on each of 3 axes
• Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
  Flammability
• PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY

• RoHS Compliant, CE and FCC
• Protection Level: IP68, NEMA 6P
• Key Lifespan >5 million actuations
• MTBF >20000H
• MTTR <30min
